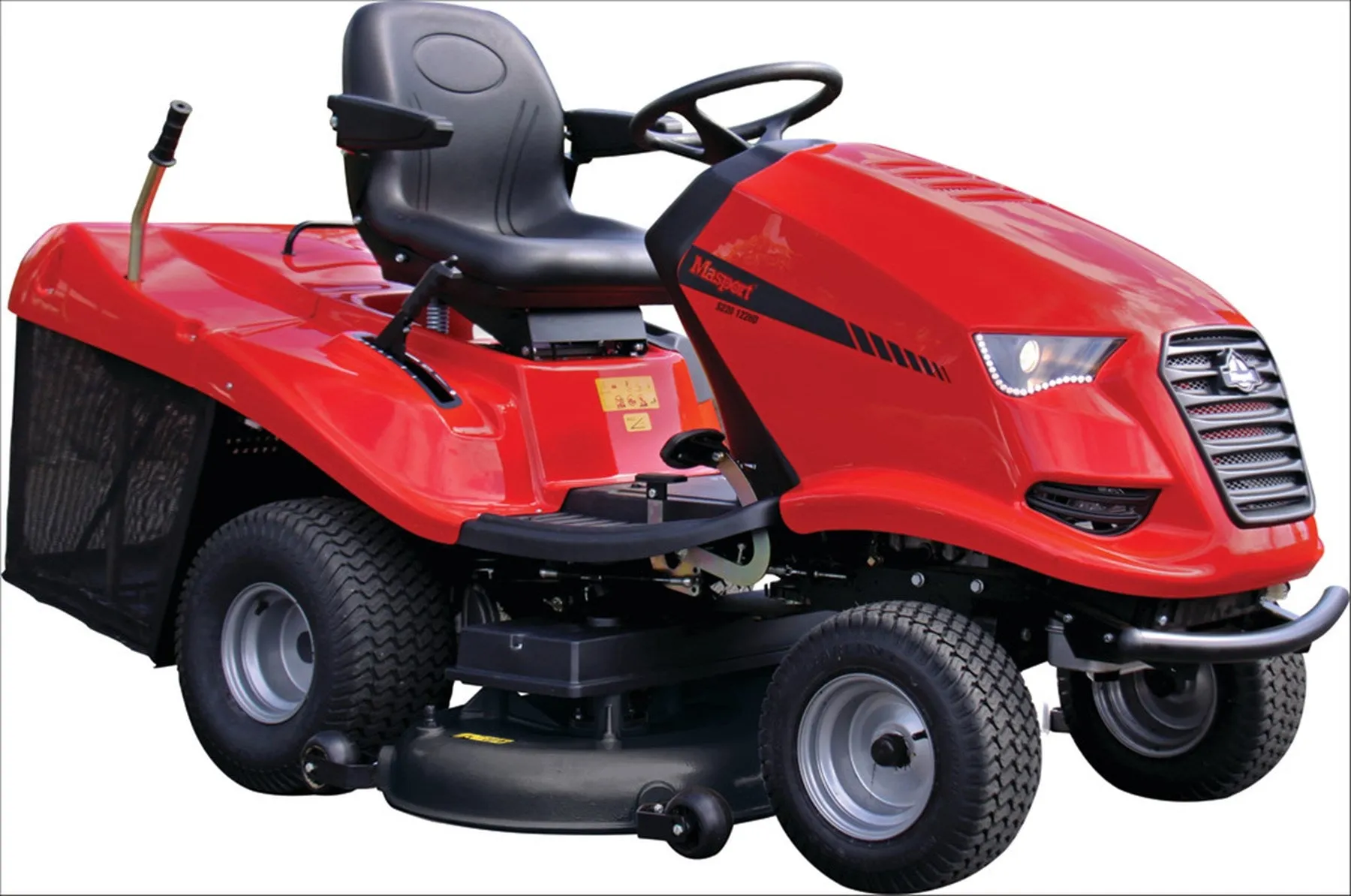

Catch, Mulch & Rear Discharge Ride-on. Briggs & Stratton 22HP Intek engine, 122cm (48") heavy duty steel cutting deck
The S220 122HD is equipped with a heavy duty 48" steel cutting deck along with the powerful 22HP Intek Briggs & Stratton engine. In addition to catching and rear discharging grass, this machine can also mulch, thanks to the integrated mulch system, resulting in a neat and tidy professional finish suitable for most home and lifestyle blocks. The durable heavy-duty chassis is built to handle extensive and demanding areas consistently year after year. Compare the specifications and you'll be impressed.
- Robust heavy duty steel 122cm (48") cutting deck featuring synchronised contra rotating, high lift blades.
- Safety shear pins provide protection to belts, spindles and the deck in case of impact
- Hardened and tempered steel blades for increased durability
- Heavy duty K62 Tuff Torq® transmission
- The integrated mulching system provides the ability to recut and recycle the grass, feeding it back to the lawn
- Catcher Full Warning indicator - choose from Auto or Manual option
- Auto - cutting blades will automatically disengage once the bag is full to avoid any over filling or clogging of the chute
- Manual - An audible alarm will sound once catcher is full. Blades will remain engaged until disengaged
- Anti-scalp wheels
Features
Mulching Capable
Reduces grass down to mulch
Headlights
For improved visibility and safety
Storage
Capable of holding up to 20kgs of gear
Tow Hitch
Gives the ability to tow a trailer
Parking Brake
Locks brake for safe park up or when transporting
Hour Meter
Keep an eye on operator hours for servicing purposes
Fuel Level Indicator
Means you can view your fuel level without removing the cap
Deck Wash
Means you can clean the loose grass from the cutting deck
Bumper
Sturdy front bumper for added protection
Specifications
Engine Make
Briggs & Stratton
Engine Model
Intek™
Fuel Tank Capacity
12L
Engine Capacity
22HP
Starting System
Key Start
Number of Cylinders
2 Cylinders
Oil Filter Make
Briggs & Stratton
Battery
12V
Cutting Width
1220mm (48")
Cutting Height Range
25mm - 85mm
Cutting System
2 high-lift blades
Blade Engagement
Electric
Hourly Cutting Performance
8500m2/h
Transmission
Rear - Hydrostatic Tuff Torq® K62
Drive System
V-Belt
Forward Speed
9km/h
Reverse Speed
4.5km/h
Chassis Material
Steel
Deck Type
Catch, Mulch & Rear Discharge
Steering System
Rack & pinion
Turning Radius
46cm
Seat Type
Deluxe with arm rests
Deck Lift
Manual
Front Axle Type
Pivoting
Deck Engagement
El-Mag Deck Engagement
Catcher Type
Fabric
Catcher Capacity
360L
Catcher Full Warning Type
Automatic or Manual
Wheel Base Size
1150mm
Front Tyres Size
16x6, 50-8
Rear Tyres Size
20x10, 0-8
Accessories
Tow Hitch included, Rear Deflector option available
Weight
303kg
