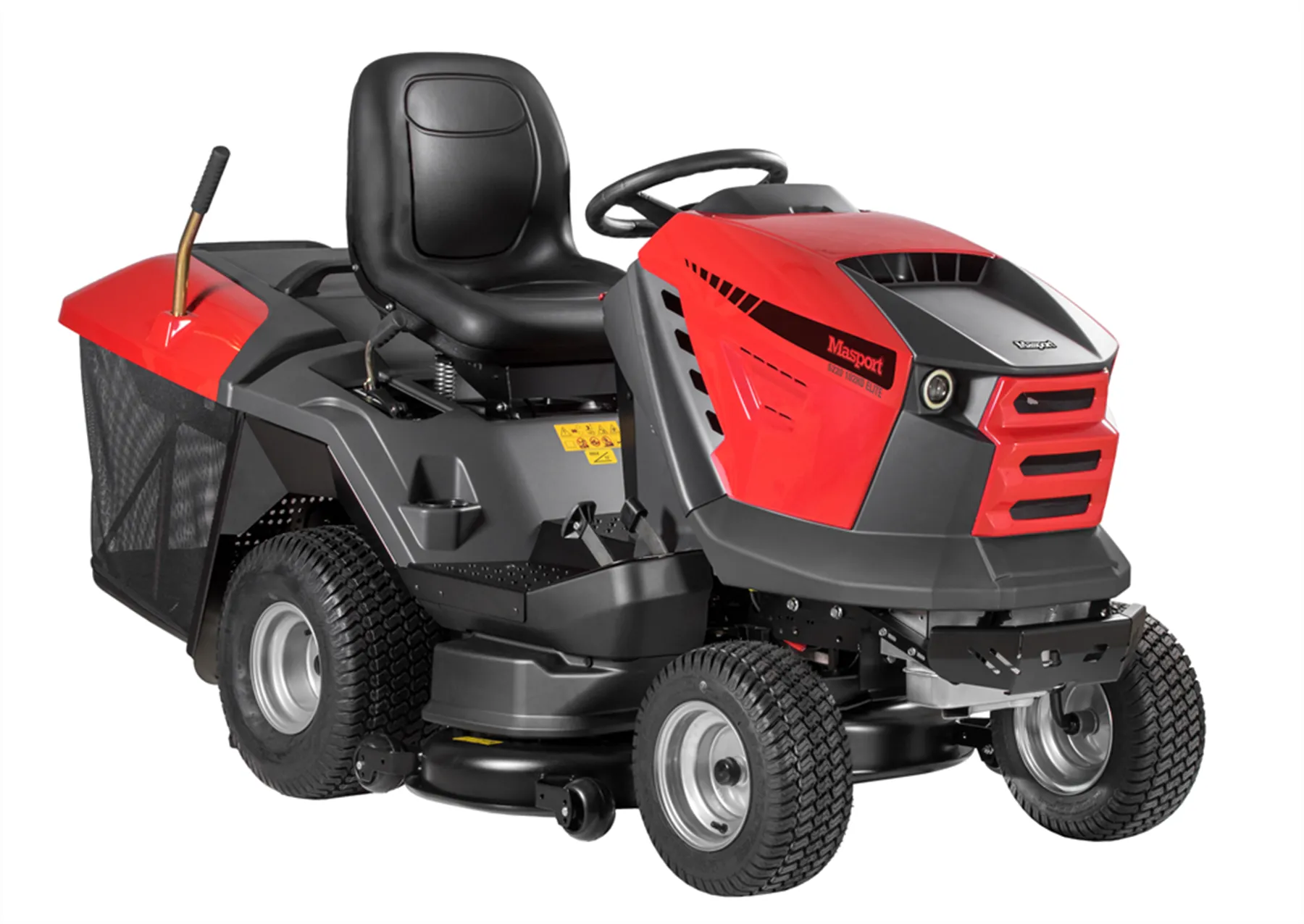

Catch, Mulch or Rear Discharge Ride-on. Briggs & Stratton 22HP V-Twin engine, 102cm (40") cutting deck
The S220 102HD ride-on mower is suitable for most homes and lifestyle blocks due to the heavy duty 40" rear catching deck with integrated mulching system. The robust 22HP Briggs and Stratton engine delivers ample power for effective grass and leaf collection for a professional finish. The integrated mulching system is a real advantage, allowing the user to switch between mulching and catching by simply adjusting the lever.
- Sturdy steel 102cm (40") cutting deck with synchronised contra rotating, high lift blades
- Safety shear pins protect belts and spindles in case of impact
- Hardened and tempered steel blades for increased durability
- Reliable K46 Tuff Torq® transmission
- Integrated mulching single lever design makes it very easy when engaging or disengaging the mulching function. This can all be done without having to leave the seat of the ride-on mower
- Catcher Full Warning indicator - Choose from Auto or Manual option:
- Auto - cutting blades will automatically disengage once the bag is full to avoid any over filling or clogging of the chute
- Manual - An audible alarm will sound once catcher is full. Blades will remain engaged until disengaged
- Machine Warranty - 2 years or 150 hours
Headlights
For improved visibility and safety
Tow Hitch
Gives the ability to tow a trailer
Parking Brake
Locks brake for safe park up or when transporting
Hour Meter
Keep an eye on operator hours for servicing purposes
Fuel Level Indicator
Means you can view your fuel level without removing the cap
Bumper
Sturdy front bumper for added protection
- Specifications
Engine Make
Briggs & Stratton
Engine Model
Intek™
Fuel Tank Capacity
12L
Engine Capacity
22HP
Number of Cylinders
2 Cylinders
Oil Filter Make
Briggs & Stratton
Battery Voltage (volts)
12V 32 Ah
Cutting Width
1020mm (40")
Cutting Height Range
25mm - 85mm
Cutting System
2 high-lift blades
Blade Engagement
Electromagnetic
Hourly Cutting Performance
Up to 7000m2/h
Cutting Positions Spec
7
Transmission
Rear - Hydrostatic Tuff Torq® K46
Drive System
V-Belt
Forward Speed
0-9.6km/h
Reverse Speed
0-5.5km/h
Chassis Material
Steel
Deck Type
Catch, Mulch or Rear Discharge
Steering System
Rack & pinion
Seat Type
Milsco
Deck Lift
Manual
Front Axle Type
Pivoting
Deck Engagement
Electromagnetic
Catcher Type
Fabric
Catcher Volume
320L
Catcher Full Warning Type
Automatic or Manual
Wheel Base Size
1182mm
Front Tyres Size
16 x 6, 50-8
Rear Tyres Size
20 x 10, 0-8
Accessories
Tow Hitch included, Rear Deflector option available
Weight
271.0kg
Product Dimensions (W x H x L)
2480mm x 1080mm x 1300mm
