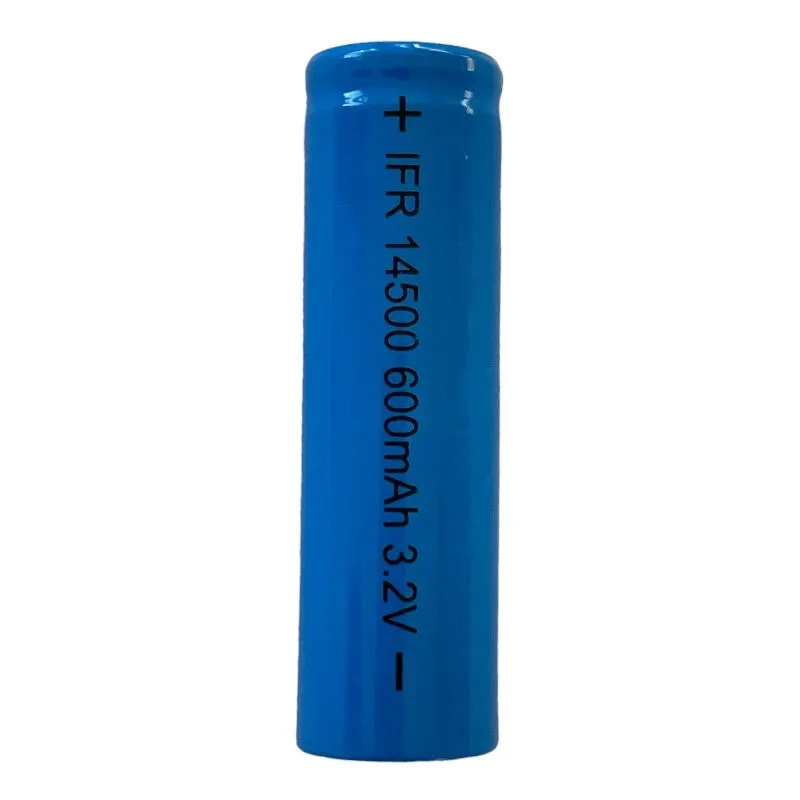

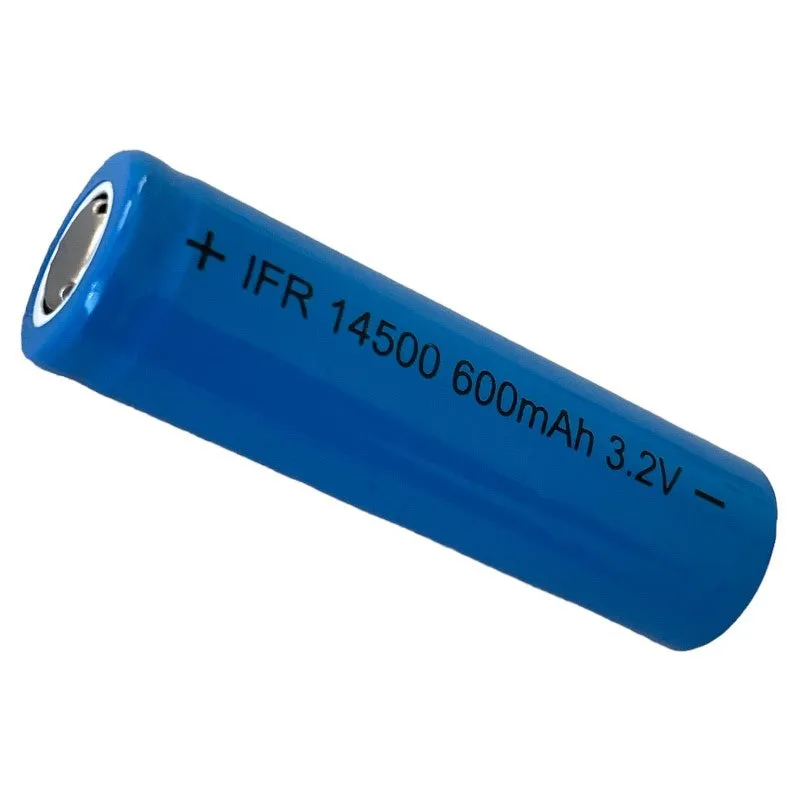

Name: 14500 LiFePO4 600mAh FLAT TOP
SKU: 137728

These 14500 LiFePO4 cells have a nominal voltage of 3.2V and a max charge voltage of 3.65V. They are ideal for applications such as small torches, flashlights, modems, cordless telephones, solar lights and much more.

Although the size of these cells is very similar to the standard AA cells, the technical parameters are very different and must not be used in a device that requires a standard AA cell to operate.

Specifications:

Type: 14500
Chemistry: LiFePO4
Size approx. Diameter 14.2 x Length 49mm
Positive Cap: Flat top
Nominal voltage: 3.2V
End-of-charge voltage: 3.65V
End-of-discharge Voltage: 2V
Typical Capacity: 600mAh
Max Continuous Discharge Current: 600mA
Max Charge Current: 600mA
Weight: Approx. 17.7g
Protected: UNPROTECTED

Note: Do NOT use this type of battery for any other device that takes 1.2V AA batteries as they will damage the device. Batteries will only have test charge. Ensure batteries are fully charged to reach full capacity. Failure to do so may lead to long term cell issues.

Usage & Charging

!!!!! IMPORTANT!!!!! These are immensely powerful cells, and extreme care should be taken using them. Only use with brand name, quality chargers (like LiitoKala, Nitecore, XTAR) and equipment! Unfortunately, we cannot replace batteries that are damaged by non-compliant chargers or equipment. There are so many chargers on the market, we cannot possibly keep track of which ones will work with these batteries. You will have to contact the charger manufacturer to ensure it can charge these batteries without damaging them. Please ensure you only use these (or any other Lithium Ion) batteries with proper Lithium-Ion chargers and equipment. Lithium-Ion batteries can easily be damaged by charging them with too high current or exceeding the maximum rated current discharge.

Use at your own risk. We do NOT accept any responsibly for damage, injury or death caused by improper use of these batteries!

Do not overcharge! Ensure the charger voltage does not exceed the batteries stated full charge voltage.
Do not over-discharge! Ensure the equipment you use do not draw more current than the batteries “Maximum Continuous Discharge Current”.
Do not leave batteries discharged for a long period! Leaving Li-Ion batteries in a discharged state can incur irreversible damage – creating a loss in capacity and a loss in cycles.
Do not short circuit your batteries! NEVER short circuit a 18650 (or more other) batteries! Short circuiting can cause a huge surge of current that will potentially burn out your battery, damage your equipment, and even cause serious injury to you!
Do not let your batteries touch each other or other metallic items! Keeping your batteries loose, such as in your pockets, is a serious way to have your batteries fail and seriously harm you. There are battery holders and covers to keep your batteries safe.

Do not dispose any battery in a fire! There are dangerous chemicals in batteries. If you try to burn your batteries, they will release dangerous fumes and will probably explode. Always dispose your old batteries to a battery recycling centre.
